I really like NixOS.

I also like to draw the NixOS logo.

While there are SVGs and PNGs at github:nixos/branding, the logo is very geometric and should be easily expressed as a program. My first attempt with turtle graphics was an experiment to work with HTML Canvas via Wasm. It works by instructing a small robot turtle, Bob, to walk and paint in the shape of a λ; you then repeat that six times:

fn draw_snowflake(bob: &mut CanvasTurtle, long: f64, short: f64, gap: f64) {
    const COLORS: [&str; 2] = ["#7EBAE4", "#5277C3"];
    for i in 0..6 {
        bob.fill_color(Some(COLORS[i % COLORS.len()].to_string()));
        bob.line_color(COLORS[i % COLORS.len()]);
        draw_lambda(bob, long, short);
        bob.forward(short * 1.5);
        bob.left(60.0);
        bob.forward(gap);
    }
}

I parameterised the lengths of the lambda; the official logo doesn’t specify the lengths.

I proceeded to draw the NixOS logo inside itself a few times in a crude way:

fn draw_nested_snowflakes(bob: &mut CanvasTurtle) {
    bob.teleport(Position::new(400.0 - 120.0, 400.0 + 200.0), bob.angle());
    draw_snowflake(bob, 600.0, 150.0, 32.0);

    bob.teleport(Position::new(400.0 - 50.0, 400.0 + 50.0), bob.angle());
    draw_snowflake(bob, 200.0, 50.0, 8.0);

    bob.teleport(Position::new(400.0 - 25.0, 400.0), bob.angle());
    draw_snowflake(bob, 60.0, 15.0, 2.0);

    bob.teleport(Position::new(400.0 - 18.0, 400.0 - 15.0), bob.angle());
    draw_snowflake(bob, 15.0, 3.75, 0.0);
}

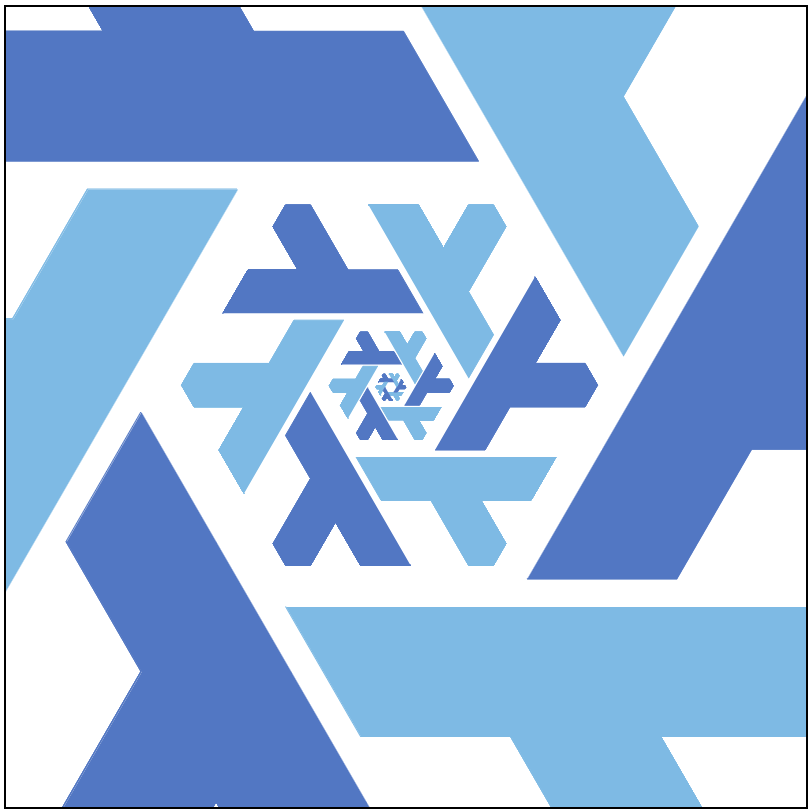

Drawing the Nix flake within the Nix flake: Nixception!

NixOS Inception

Drawing a single lambda was done by exploring left and right until it looked right:

fn draw_lambda(bob: &mut CanvasTurtle, long: f64, short: f64) {
    bob.pen_down();

    bob.forward(long);
    bob.right(120.0);
    bob.forward(short);
    bob.right(60.0);
    bob.forward(short);
    bob.left(120.0);
    bob.forward(short);
    bob.right(60.0);
    bob.forward(short / 2.0);
    bob.right(60.0);
    bob.forward(short / 2.0);
    bob.right(60.0);
    bob.forward(short * 1.5);
    bob.left(60.0);
    bob.forward(short);
    bob.right(60.0);
    bob.forward(short);
    bob.right(120.0);

    bob.pen_up();
}

Sure, compile-time animation you say. I want to see the logo move!

Boids

One of my students wrote a boids simulator in JavaScript where the boids change color based on their neighbors. I really liked the idea and made something similar; celebrating new year’s, a clique of boids will explode into fireworks if they hang out too much, and every once in a while, they collectively take the shape of the NixOS logo.

(Slightly broken on mobile, since the NixOS logo has a fixed size that may exceed your screen, and boids following the logo will wrap around the screen and accidentally break formation.)

Nix boids

It does kind of look like six dicks.
